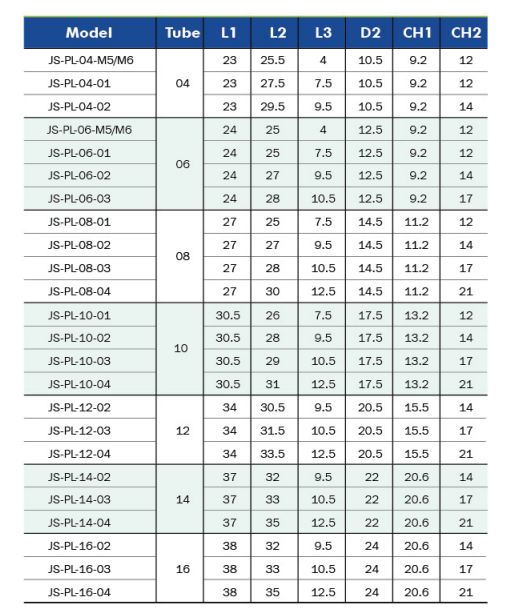

JS-PL L型螺纹二通 - 产品规格
除FKM氟橡胶外均为316材质，含卡簧。
| # | MODEL | Tube[mm] | R[mm] | M[mm] | L1[mm] | L2[mm] | L3[mm] | H[mm] | A[mm] | D[mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | JS6-PL16-04 | 16 | R1/2 | 23.4 | 47.2 | 42.6 | 12.5 | 21 | 23.3 | 24 |
| 2 | JS6-PL16-03 | 16 | R3/8 | 23.4 | 47.8 | 41.1 | 10.5 | 17 | 18.8 | 24 |
| 3 | JS6-PL12-04 | 12 | R1/2 | 21 | 40.8 | 37.8 | 12.5 | 21 | 23.3 | 20 |
| 4 | JS6-PL12-03 | 12 | R3/8 | 21 | 27.8 | 25.9 | 10.5 | 17 | 18.8 | 20 |
| 5 | JS6-PL12-02 | 12 | R1/4 | 21 | 27.8 | 24.9 | 9.5 | 14 | 15.5 | 20 |
| 6 | JS6-PL10-04 | 10 | R1/2 | 18.5 | 24.1 | 27.2 | 12.5 | 21 | 23.3 | 17 |
| 7 | JS6-PL10-03 | 10 | R3/8 | 18.5 | 24.1 | 24.4 | 10.5 | 17 | 18.8 | 17 |
| 8 | JS6-PL10-02 | 10 | R1/4 | 18.5 | 24.1 | 23.5 | 9.5 | 14 | 15.5 | 17 |
| 9 | JS6-PL10-01 | 10 | R1/8 | 18.5 | 24.1 | 21.9 | 7.5 | 12 | 13.3 | 17 |
| 10 | JS6-PL8-04 | 8 | R1/2 | 16.8 | 20.4 | 25.7 | 12.5 | 21 | 23.3 | 14 |
| 11 | JS6-PL8-03 | 8 | R3/8 | 16.8 | 20.4 | 22.8 | 10.5 | 17 | 18.8 | 14 |
| 12 | JS6-PL8-02 | 8 | R1/4 | 16.8 | 20.4 | 21.8 | 9.5 | 14 | 15.5 | 14 |
| 13 | JS6-PL8-01 | 8 | R1/8 | 16.8 | 20.4 | 20.1 | 7.5 | 12 | 13.3 | 14 |
| 14 | JS6-PL6-03 | 6 | R3/8 | 15.2 | 19 | 21.8 | 10.5 | 17 | 18.8 | 12 |
| 15 | JS6-PL6-02 | 6 | R1/4 | 15.2 | 19 | 20.8 | 9.5 | 14 | 15.5 | 12 |
| 16 | JS6-PL6-01 | 6 | R1/8 | 15.2 | 19 | 19.1 | 7.5 | 12 | 13.3 | 12 |
| 17 | JS6-PL6-M5 | 6 | M5 | 15.2 | 19 | 21.1 | 4 | 12 | 13.3 | 12 |
| 18 | JS6-PL4-M5 | 4 | M5 | 14.2 | 18.4 | 20.1 | 4 | 12 | 13.3 | 10 |
| 19 | JS6-PL4-02 | 4 | R1/4 | 14.2 | 18.4 | 19.8 | 9.5 | 14 | 15.5 | 10 |
| 20 | JS6-PL4-01 | 4 | R1/8 | 14.2 | 18.4 | 20.1 | 4 | 12 | 13.3 | 10 |
